Cykler Gravel Pinarello Grevil F Shimano GRX 820 2x12v Fulcrum Soniq Al B302-Radiant Aura

PINARELLO GREVIL F Shimano GRX 820 2x12v Fulcrum Soniq Al Wheels

FULL GAS EVERYWHERE

If you want to win a Gravel race, this is the bike for you. This is the off-road DOGMA.

The versatile GREVIL F is ready for anything. It can accommodate any kind of wheel or tyre combination, adapting to your every need, giving you the freedom to push the limits and compete with yourself.

Even off road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity. If you want to triumph on every terrain, this is the bike for you. This is the off-road DOGMA.

AN AEROGRAVEL BIKE?

Aerodynamics always count. Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings us a little bit closer to victory.

FORKFLAP

Fork Flap: Stabilises the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.

FLAT BACKPROFILE

Derived from the DOGMA, this profile reduces aerodynamic drag on the tube, especially when there are bottles present.

TICR

The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.

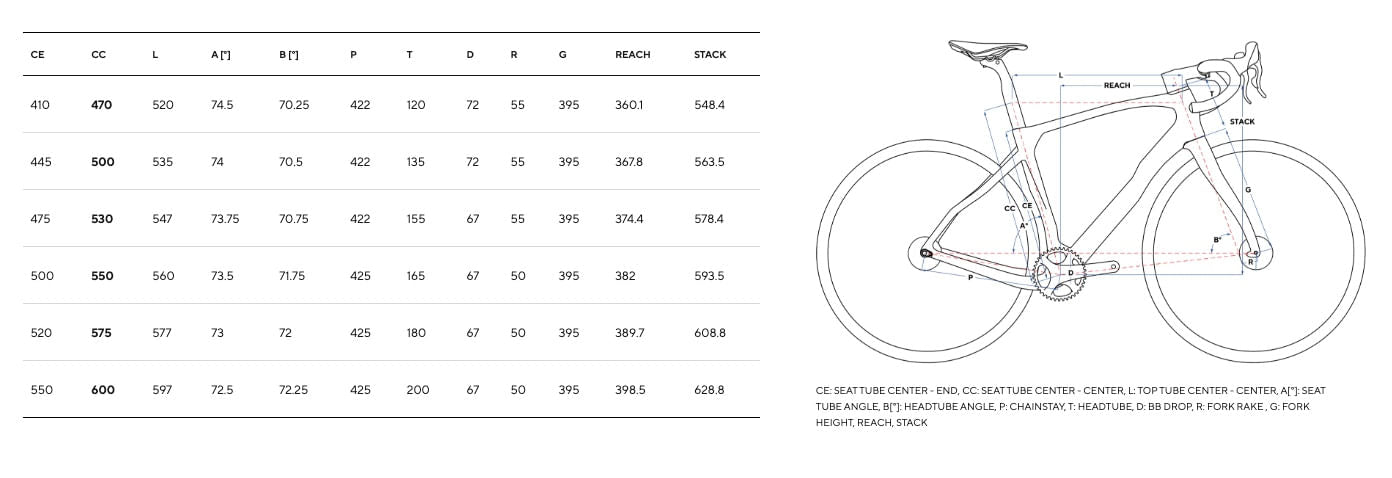

GRAVEL GEOMETRY

Differentiated geometry and rake ensures the same trail and the same control across all frame sizes.

• Reach and stack: Compared to a traditional road bike, the GREVIL F has shorter reach and higher stack to create an elongated position, offering better comfort and better handling
• An increased seat tube angle allows for greater wheel clearance
• Modified fork angle and Rake ensures better handling and riding comfort
• Chain stays: Measuring between 422-425mm. This provides the best compromise between responsiveness and comfort. Compatible with 700c or 650b wheels.

TWINARMS

Maximum energy transmission and vibration absorption

The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allows the seat tube to absorb impacts coming from the rear wheel in a more uniform way.

CARBONT900 UD

The right balance between reactivity, dampening capabilities and lightness for competition.

Recommended Frame Sizes by Rider Height

• Size 47:    For riders up to 1.68 m
• Size 50:    For riders between 1.69 m and 1.73 m
• Size 53:    For riders between 1.74 m and 1.78 m
• Size 55:    For riders between 1.79 m and 1.84 m
• Size 57.5: For riders between 1.85 m and 1.89 m
• Size 60:    For riders from 1.90 m and above

Handlebar and stem dimensions according to frame size

• Frame Size 47: 42 cm – 90 mm
• Frame Size 50: 42 cm – 90 mm
• Frame Size 53: 44 cm – 100 mm
• Frame Size 55: 44 cm – 110 mm
• Frame Size 57,5: 46 cm – 120 mm
• Frame Size 60: 6 cm– 130 mm
