Scott Passage 20 Wave 2026 Highland Green
4256188113006
SCOTT PASSAGE 20 WAVE 2026 HIGHLAND GREEN

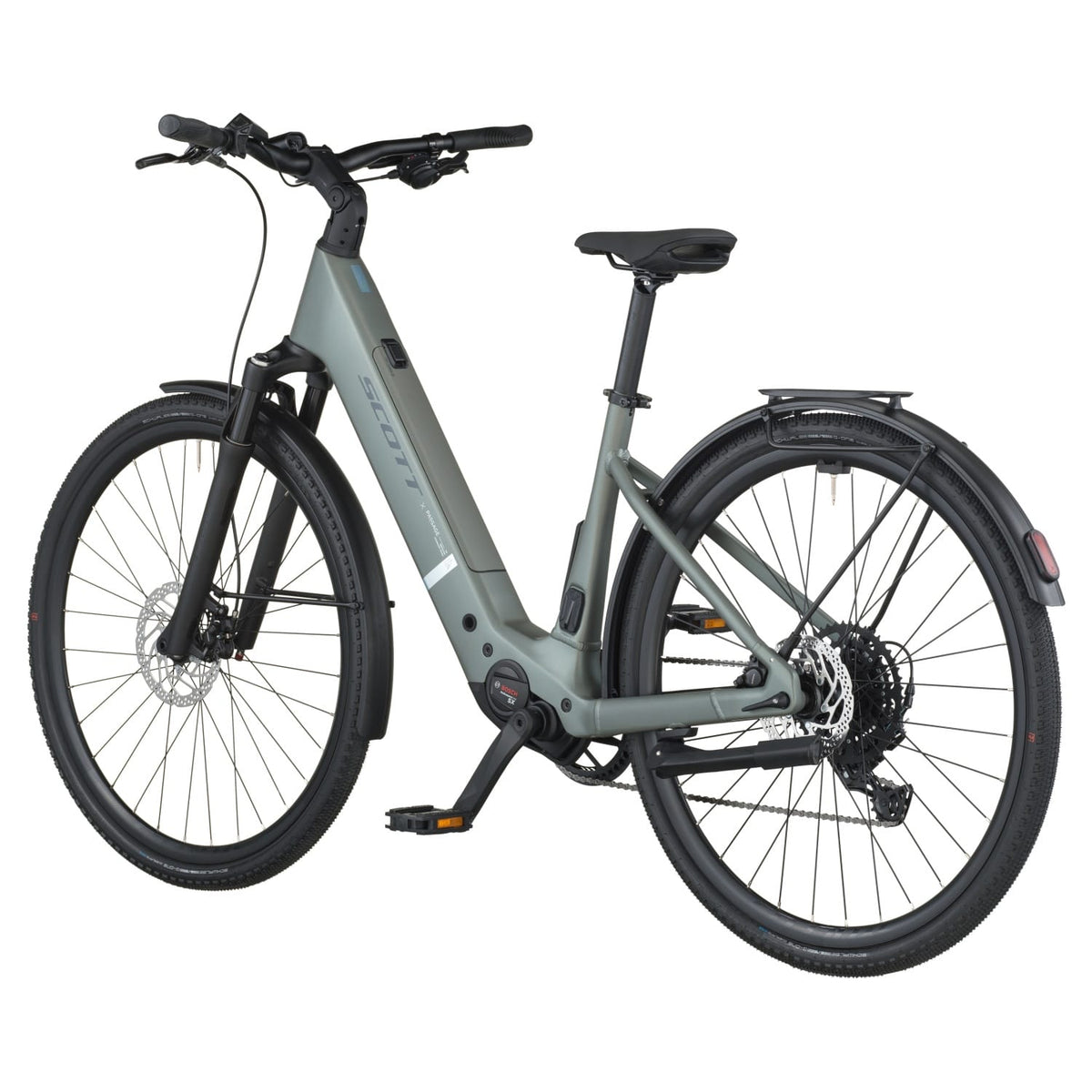

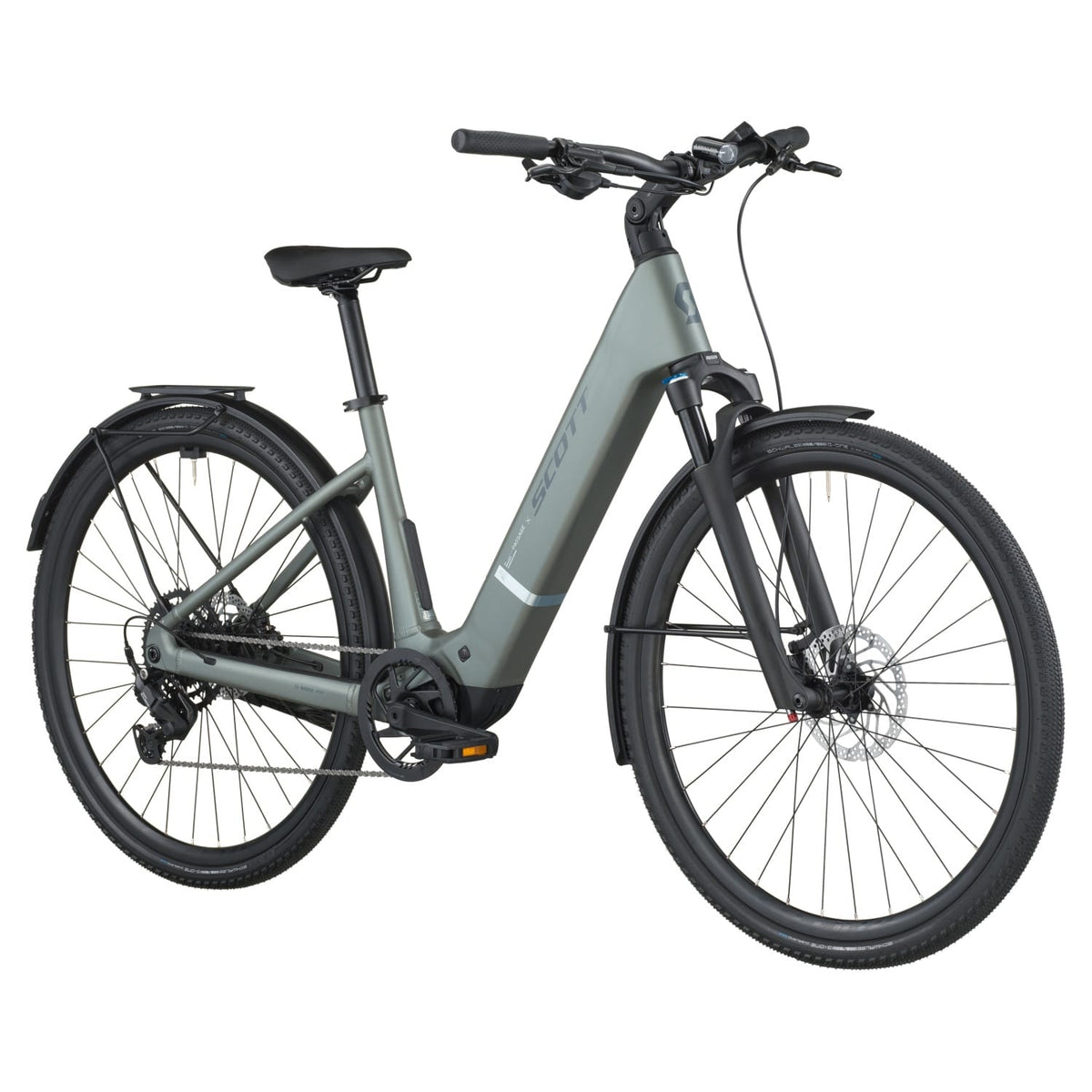

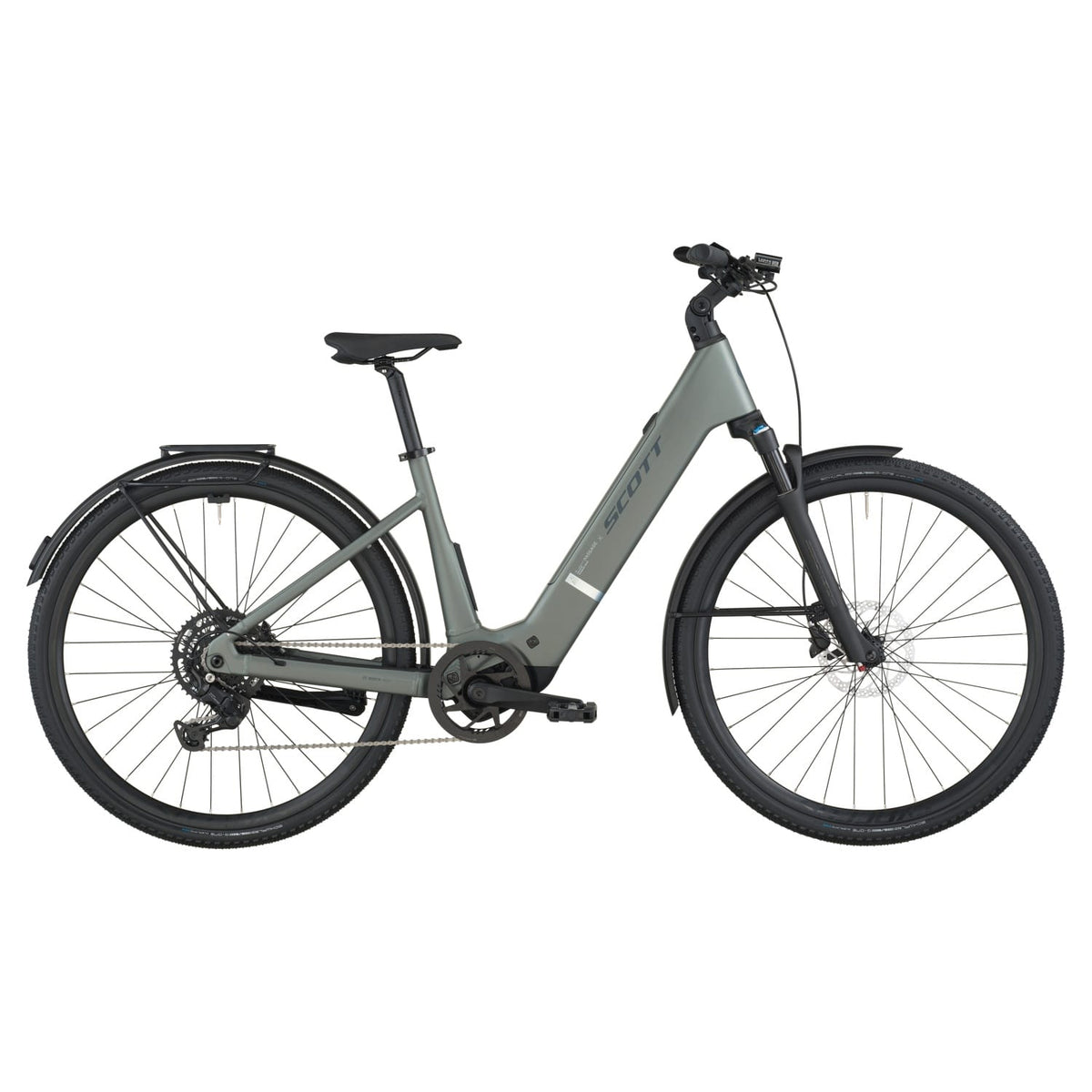

The Scott Passage 20 Wave 2026 Highland Green is an electric bike for everyday journeys and leisure rides. Its assistance system uses the Bosch Performance Line SX (BDU314Y) motor and a 400 Wh battery. The 1x9 drivetrain lets you adjust your pedalling to the route.
FEATURES:
- Frame: Alloy S-L=29", 6061 Alloy custom butted tubing. Top extraction battery

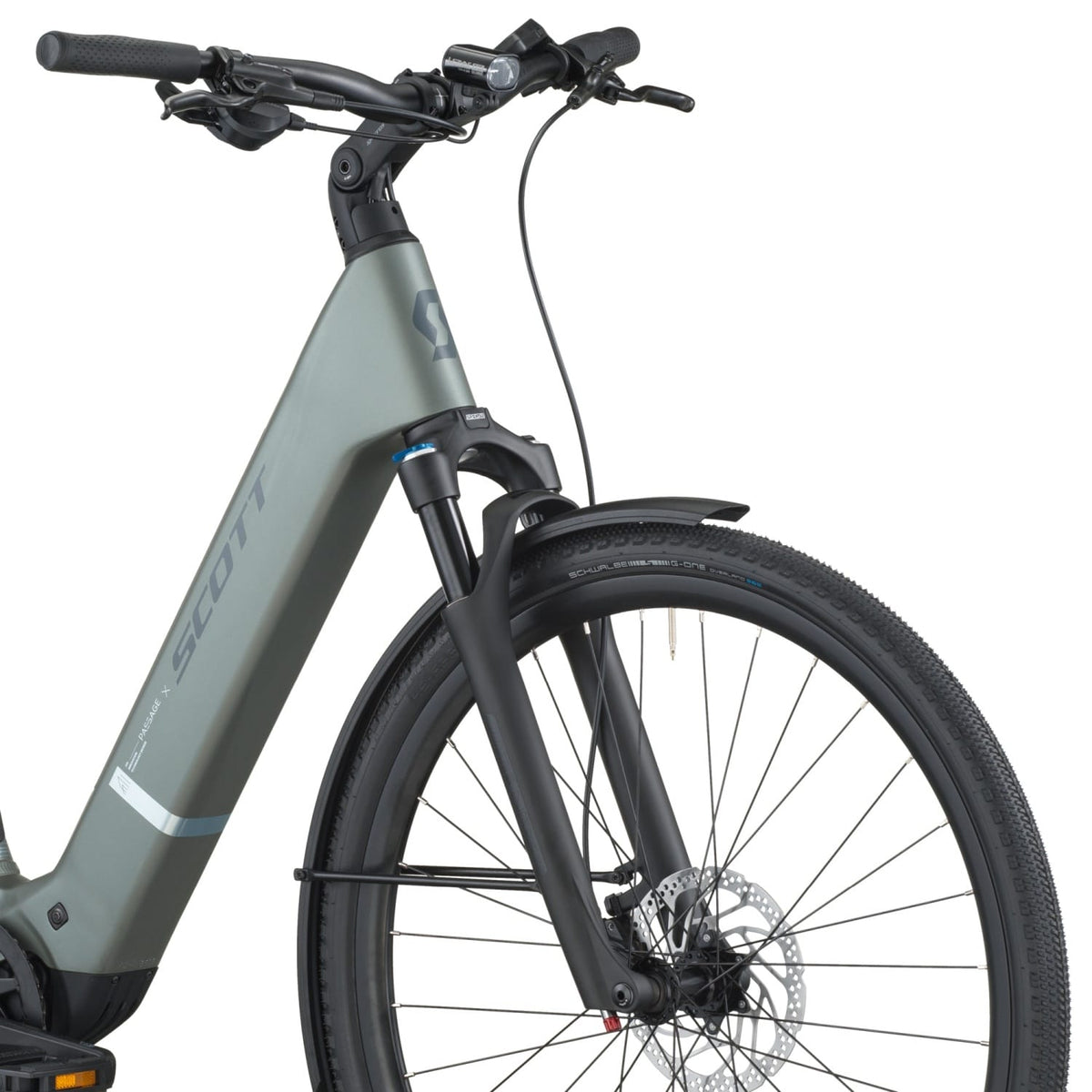

- Fork: SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel
- Rear Derailleur: Shimano CUES RDU4000GS 9 Speed
- Shifters: Shimano CUES SLU4009RC, 9 Speed
- Crankset: FSA CK-220 170mm
- Cassette/Rear Sprocket: Shimano LG300, 11-46T
- Chain/Belt: Shimano LG500
- Front Brake: Shimano BR-MT200 Disc
- Rear Brake: Shimano BR-MT200 Disc
- Front Tire: Schwalbe G-One Overland 365 Performance, 700x45C
- Rear Tire: Schwalbe G-One Overland 365 Performance, 700x45C

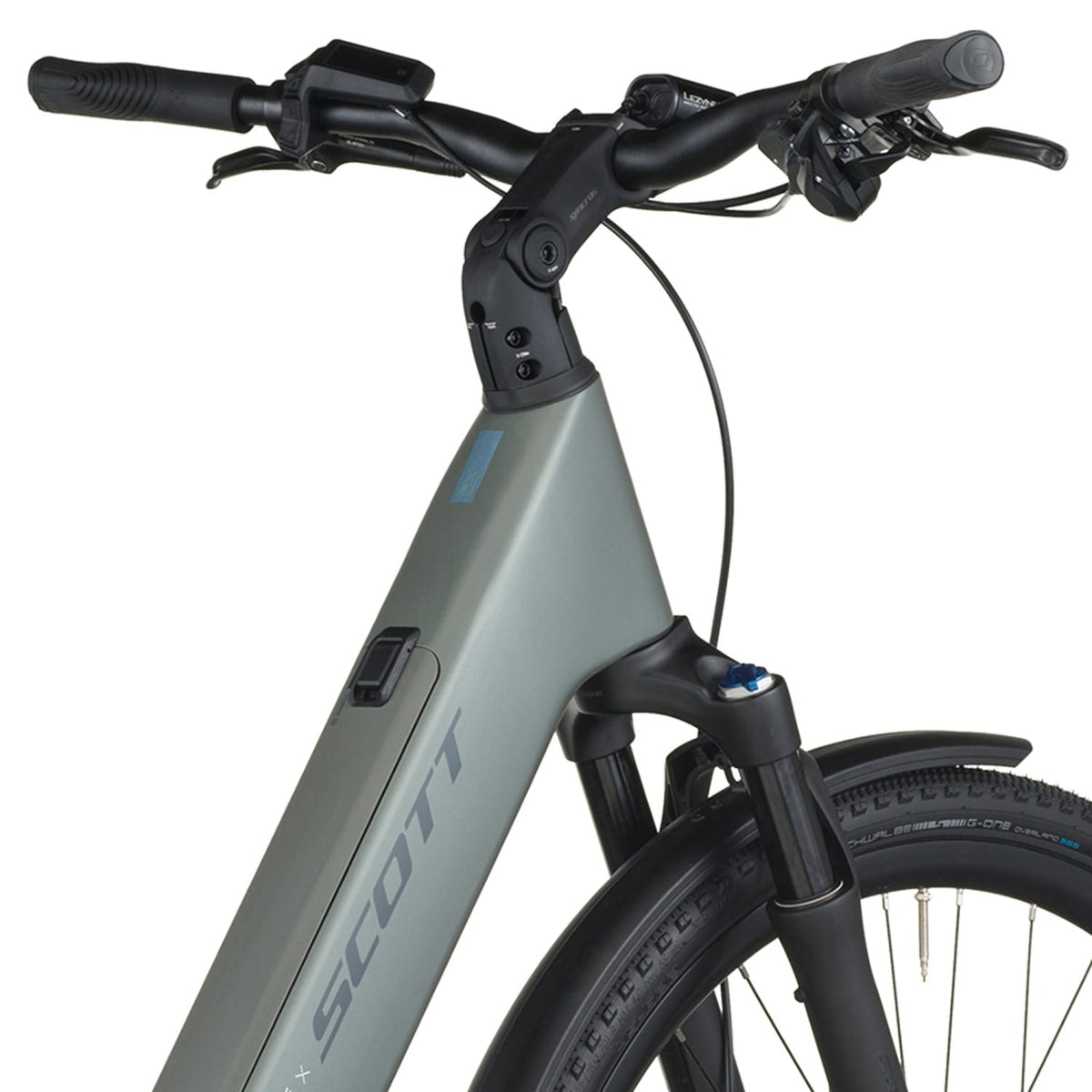

- Handlebar: Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
- Stem: Adjustable stem 90mm 10°-60
- Seatpost: Syncros M3.0, 31.6
- Saddle: Syncros Capilano

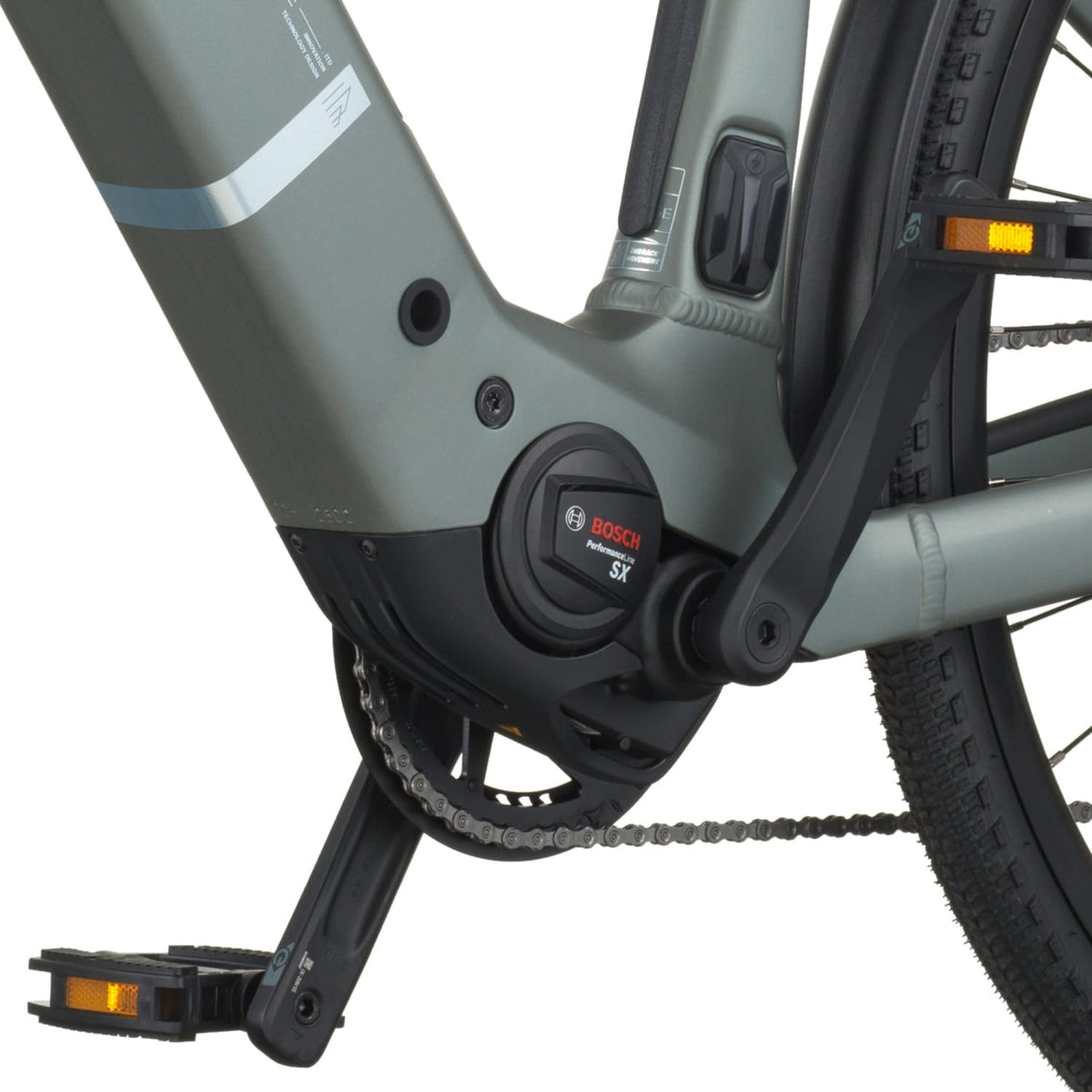

- Motor: Bosch Performance Line SX (BDU314Y).EU: 25kmh
- Battery: Compact Tube 400Wh
- Display: Bosch Purion 200
- Charger: 2A Charger

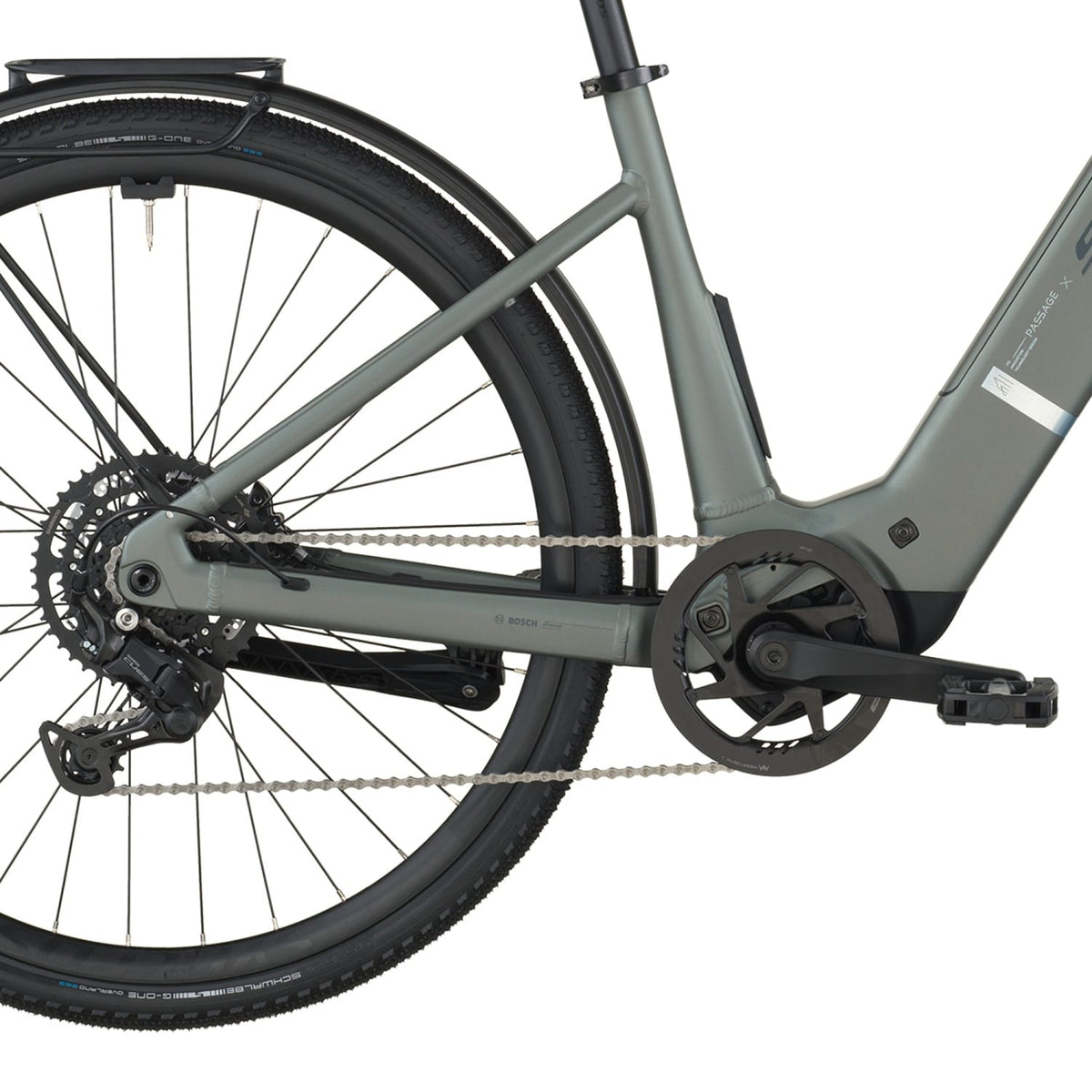

- Drivetrain: 1x9
- Approximate Weight: 22.2 kg
- Headset: Acros, 1.5"- 1.5".semi integ. OD 50/61mm, ID 44/55mm
- Pedals: Marwi SP-827
- Front Hub: Shimano HBTC50015B CL, 15x100mm
- Rear Hub: Shimano FHTC500HMB CL, 12x142mm
- Rims: Syncros X15 Disc
- Spokes: Black Spokes
- Chain Guide: Syncros

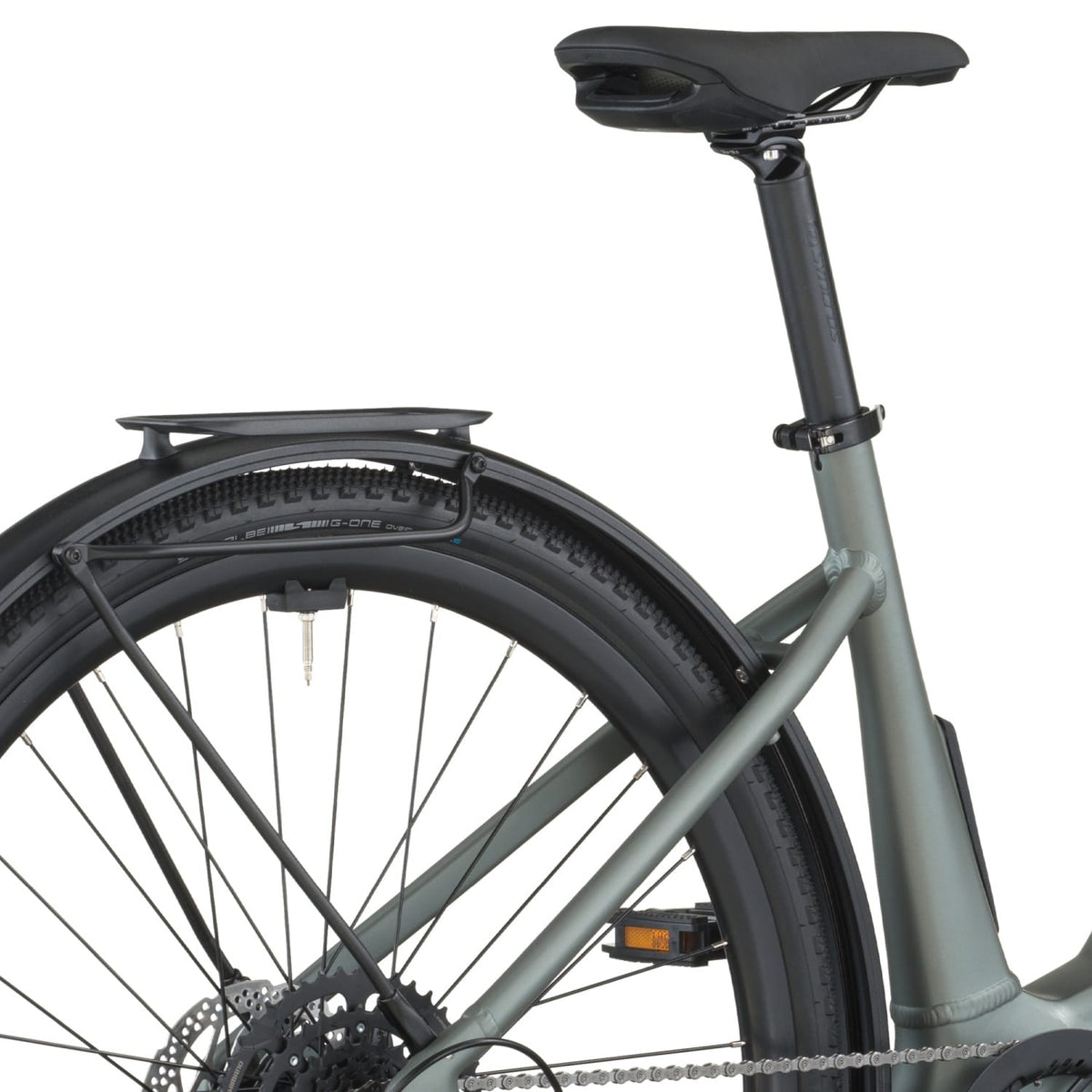

- Rear Rack: Racktime Micro Rack SnapIt 2.0 8KG
- Mudguards: Alumee, aluminium profile
- Kickstand: Passage
- Front Light: Lezyne Fusion E550SM
- Rear Light: Supernova TL3Z
Specifications may change without notice.

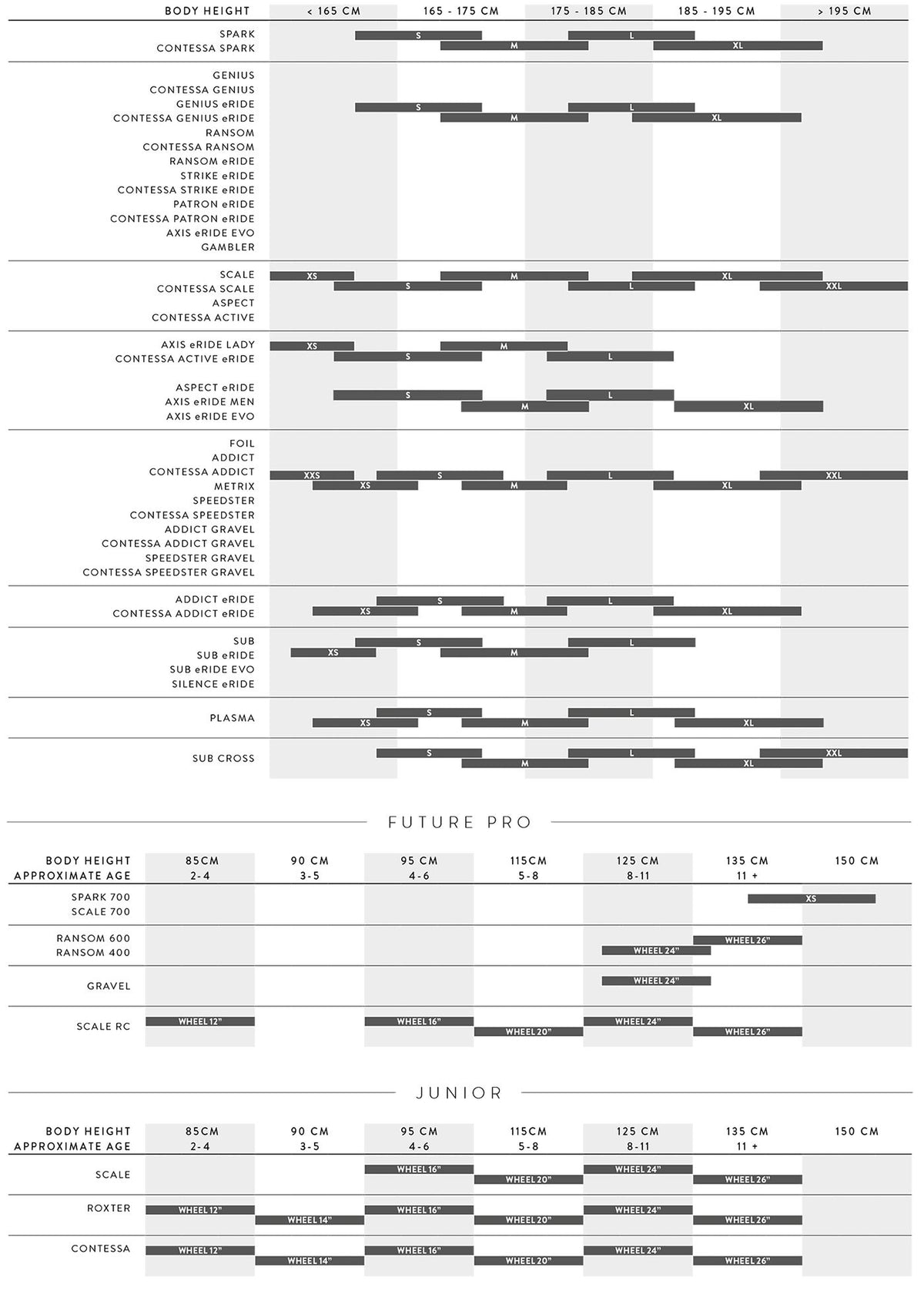

- Size:
- S
Pairs well with
Szybkie i bezpieczne dostawy
Indywidualne doradztwo
2 lata gwarancji
Proste procedury zwrotów
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Ogólne
- Year
- 2026
- Gender
- Unisex
- Family
- Bicis
- Wheel size
- 700
Rama
- Frame
- Aluminio S-L=29", 6061 Aluminio Tubos de espesor variable. Batería de extracción superior
- Fork
- SR Suntour NRX32-E Aire LO R, cónico , 15x100 bolt Eje, Remote Bloqueo , Acero Steerer, 75mm Recorrido
- Headset
- Acros, 1.5"- 1.5".semi integ. OD 50/61mm, ID 44/55mm
Cockpit
- Handlebars
- Syncros Welded Aluminio Combo 680mm, retroceso 9°, Upsweep 8°, 70mm, with delantero Light mount
- Stem
- ajustable stem 90mm 10°-60
Hamulce
- Front brake
- Shimano BR-MT200 Disc
- Rear brake
- Shimano BR-MT200 Disc
Siodło
- Saddle
- Syncros Capilano
- Seatpost
- Syncros M3.0, 31.6
Napęd
- Shift levers
- Shimano CUES SLU4009RC, 9s
- Rear derailleur
- Shimano CUES RDU4000GS 9s
- Cassette
- Shimano LG300, 11-46t
- Chain
- Shimano LG500
- Crankarms
- FSA CK-220 170mm
- Chainrings
- FSA 38t
- Pedals
- Marwi SP-827
- Speeds
- 1x9
- Chain guide
- Syncros
Koła
- Front tire
- Schwalbe G-One Overland 365 Performance, 700x45C
- Rear tire
- Schwalbe G-One Overland 365 Performance, 700x45C
- Rims
- Syncros X15 Disc
- Front hub
- Shimano HBTC50015B CL, 15x100mm
- Rear hub
- Shimano FHTC500HMB CL, 12x142mm
- Spokes
- Negro Spokes
Komponenty eBike
- Motor
- Bosch Performance Line SX (BDU314Y)/EU: 25 km/h
- Battery
- Compact Tube 400Wh
- Charger
- 2A cargador
- Screen
- Bosch Purion 200
Pozostałe komponenty
- Front light
- Lezyne Fusion E550SM
- Rear light
- Supernova TL3Z
- Fenders
- Alumee, perfil de aluminio
- Rack
- Racktime Micro Rack SnapIt 2.0 8KG
- Kickstand
- Passage
*Zdjęcia mają charakter poglądowy i mogą różnić się od produktu końcowego. Kolory mogą się różnić w zależności od używanego ekranu.
*Należy pamiętać, że specyfikacje techniczne mogą ulec zmianie bez wcześniejszego powiadomienia ze strony producenta.
