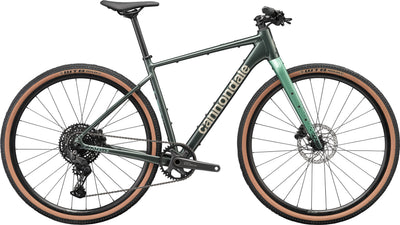

Cannondale Topstone CAAD 3 CUES 1x Flat Bar 2027 Tech Green
C1521GU1051
CANNONDALE TOPSTONE CAAD 3 CUES 1X FLAT BAR 2027 TECH GREEN
The Topstone CAAD 3 CUES 1x Flat Bar 2027 pairs Cannondale’s gravel platform with a riser handlebar. It is an option for linking city streets, quiet roads and tracks with a hand position familiar to riders of mountain bikes and hybrids.
The SmartForm C1 aluminium frame and carbon fork include mounting points to adapt your equipment. Shimano CUES 1x10 gearing pairs a 40-tooth chainring with an 11-48 cassette. CUES UR300 hydraulic brakes, the 740 mm Cannondale 3 Riser handlebar and WTB Riddler Comp 45 mm tyres complete a setup for everyday journeys and leisure rides on mixed surfaces.
OutFront steering geometry combines a 55 mm fork offset with a relaxed head angle for stability on gravel and responsive handling. The frame uses a UDH hanger, a threaded 68 mm BSA bottom bracket and a 27.2 mm seatpost. Multiple mounting points make it easy to adapt the bike for daily journeys, gravel rides and trips with luggage. Tyre clearance accommodates a measured width of up to 52 mm, with 4 mm of clearance on each side.
FEATURES
- Frame: SmartForm C1 aluminium; thru-axles; UDH hanger; StraightShot internal cable routing
- Fork: Topstone carbon; 12x100 mm thru-axle; 55 mm OutFront offset
- Drivetrain: Shimano CUES U6000, 1x10; chainring 40 teeth; cassette 11-48 teeth
- Brakes: Shimano CUES UR300; hydraulic disc; 160/160 mm
- Wheels: GXD 1.0, 28 spokes, 23mm internal width
- Tyres: WTB Riddler Comp, 700x45c, tubeless ready
- Mounts: bottles, bags, racks and mudguards
Build details

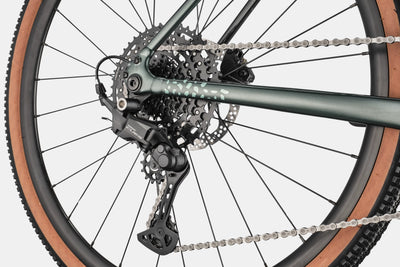

- Rear derailleur: Shimano CUES U6000, Shadow RD+, 10-speed
- Shifters: Shimano CUES U6000, 10-speed
- Chain: Shimano LG500, LinkGlide, 11-speed
- Saddle: Selle Royal SRX Open, 145mm
- Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm
- Headset: Acros IS52/40 ICR
- Stem: Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
Tubeless valves are included. Tubeless compatibility does not mean the bike is delivered with a completed tubeless setup.
Specifications published by Cannondale may change according to component availability.
Pedals are not included.
- Size:
- 51
Pairs well with
Snabba och säkra leveranser
Skräddarsydd rådgivning
2 års garanti
Enkel hantering av returer
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Allmänt
- Year
- 2027
- Gender
- Unisex
- Wheel size
- 700
Ram
- Frame
- Topstone CAAD, SmartForm C1 Alloy, 12x142 thru-axle, 27.2 dropper compatible seat tube, 1.5" Acros-compatible headtube, BSA 68mm threaded BB, flat mount disc - 160mm native, UDH, StraightShot internal cable and dynamo routing, multiple gear/bottle mounts, 18mm two-bolt kickstand mount, rack and fender compatible, suspension-ready geometry
- Fork
- Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, integrated cable and dynamo routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
- Headset
- Acros IS52/40 ICR
- Frame model
- Topstone CAAD
Cockpit
- Handlebars
- Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
- Stem
- Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
- Grips
- Cannondale XC Silicone
Bromsar
- Front brake
- Shimano CUES UR300 hydraulic disc, 160/160mm RT30 centerlock rotors
- Rear brake
- Shimano CUES UR300 hydraulic disc, 160/160mm RT30 centerlock rotors
- Brake levers
- Shimano CUES UR300 hydraulic disc
Sadel
- Saddle
- Selle Royal SRX Open, 145mm
- Seatpost
- Cannondale 3, 6061 Alloy, 27.2x350mm
Drivlina
- Shift levers
- Shimano CUES U6000, 10-speed
- Rear derailleur
- Shimano CUES U6000, Shadow RD+, 10-speed
- Cassette
- Shimano CUES LG300, 11-48, 10-speed
- Chain
- Shimano LG500, LinkGlide, 11-speed
- Crankarms
- Shimano CUES 6030, 40T, 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
- Chainrings
- 40 D
- Crankset
- Shimano CUES 6030, 40T, 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
- Bottom bracket
- Shimano BSA 68
- Pedals
- Not included
- Speeds
- 10
Hjul
- Front tire
- WTB Riddler Comp, 700x45c, tubeless ready
- Rear tire
- WTB Riddler Comp, 700x45c, tubeless ready
- Rims
- GXD 1.0, 28h, 23mm inner width
- Front hub
- Shimano TC500, 12x100mm, centerlock
- Rear hub
- Shimano TC500, 12x142mm, centerlock, HG driver
- Spokes
- Stainless Steel, 14g
*Bilderna är vägledande och kan skilja sig från slutprodukten. Färger kan variera beroende på skärm.
*Observera att tekniska specifikationer kan ändras utan föregående meddelande från tillverkaren.
